Characteristic
|

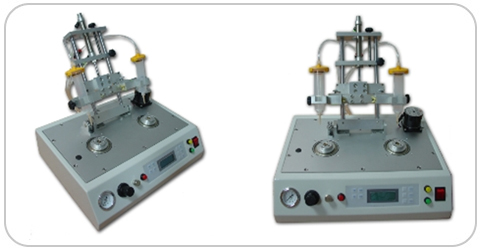

LD-900 is a rotary system providing an accurate circular route for dispensing glue on one or two objects simultaneously. This unit employs the core technology of LD-2098 dispenser. The air filter regulator attached to the back of this unit can effectively reduce the dust from the air compressor to a minimum. Through the use of the step motor, this unit is able to control the speed of the dispensing. Its built-in dispenser and panel display makes this a convenient, space-efficient unit. |
| Application |
dispenses all assembly fluids |
| Specification |
| Size |
W-430 x L-530 x H-450 mm, stand-300 mm |
| Weight |
12.5 kg |
| Power Input |
110 VAC and 220 VAC |
| Voltage |
24 VDC |
| Air Input |
70 to 100 psi (5.0 to 7.0 bar) |
| Air Output |
1 to 100 psi (0.1 to 7.0 bar) |
| Timer Range |
digital timer 0.01 - 99.00 sec |
| Vacuum |
adjustable |
| Control |
continuous or momentary |
|
|
