Characteristic
|

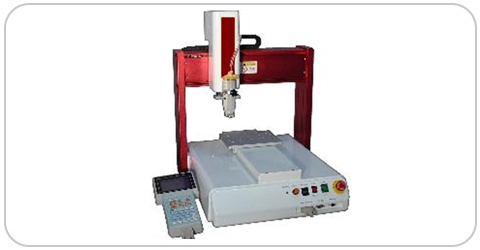

LD-300D is a new generation of 3-Axis work station with light weight design. The system is really easy and simple to operate with the multi language user friendly control panel. The system is built with 99 program capacity and several I/O port connections that will suit your mull it purpose work flow. |
| Application |
 |
|
 |
| suitable for all kinds of automation |
|
| Specification |
| Working Range |
300/300/100 X/Y/Z (mm) |
| Max. Loading |
XY 10 kg/Z 5 kg |
| Moving Speed |
XY 0.1 ~ 500/Z 250 (mm/sec) |
| Resolution |
0.01 mm/Axis |
| Repeatability |
+/- 0.02 mm/Axis |
| Program Capacity |
99 sets |
| Data Import Type |
CF Card |
| Program Platform |
Control Panel 3" LCD |
| Motor System |
Japan micro step motor |
| Driving Method |
XY¡GBelt Z¡GScrewball |
| Interpolation Function |
3 axis |
| Programming Method |
Multi Language Control Panel |
| I/O Signals Port |
8 Inputs/8 Outputs |
| Power Input |
AC110 ~ 220V 300W |
| Working Temperature |
10 - 40 C |
| Working Relative Humidity |
20 – 90% no condensation |
| Dimensions |
485 x 500 x 600 (W x D x H mm) |
| Weight |
32 kg |
|
