Characteristic
|

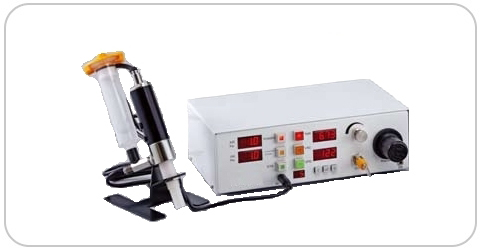

By integrating the screw feed technology with a precise microdeposit valve, the LD-2080 can achieve complete shutoff and zero dead fluid volume. This specialized auger paste valve is able to utilize any standard needle and provides two types of auger configuration (8 or 16 pitch). Its auger speed range is 0~250 rpm. |
| Application |
Suitable for particles and high viscosity glue, such as pastes and epoxy. |
| Specification |
| Size |
W-170 x L-230 x H-73 mm |
| Weight |
2052 g |
| Power Input |
AC 110V ~ AC 220V |
| Voltage |
DC 24V |
| Air Input |
70 to 100 psi (5.0 to 7.0 bar) |
| Air Output |
1 to 100 psi (0.1 to 7.0 bar) |
| Timer Range |
Digital timer 0.01 - 99.99 sec |
| Vacuum Control |
Adjustable |
| Memory |
Last setting |
| Operation Mode |
Steady¡BTimed¡BIntermittent |
| Control Type |
Foot pedal¡BFinger switch |
|
