Characteristic
|

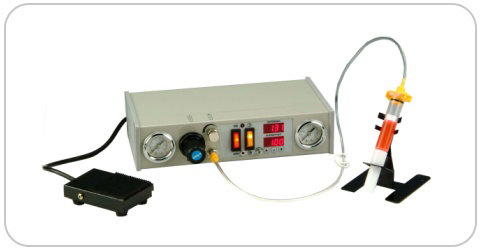

Employing the same core technology, not only does the LD-1800 achieve the same performance and reliability as the LD-2080, this unit also contains an extra gauge for the vacuum. Depending on the viscosity of the glue, this unit can adjust the vacuum volume accordingly. The extra gauge can accurately record the relative vacuum volumes of various viscosities, thereby reducing the error caused by switching glues. |
| Application |
Applicable to various assembly fluids. |
| Specification |
| Size |
W-170 x L-285 x H-80 mm |
| Weight |
2631 g |
| Power Input |
AC 110V ~ AC 220V |
| Voltage |
DC 24V |
| Air Input |
70 to 100 psi (5.0 to 7.0 bar) |
| Air Output |
1 to 100 psi (0.1 to 7.0 bar) |
| Timer Range |
Digital timer 0.01 - 99.99 sec |
| Vacuum Control |
Adjustable |
| Memory |
Last setting |
| Operation Mode |
Steady¡BTimed¡BIntermittent |
| Control Type |
Foot pedal¡BFinger switch |
|
|
