Characteristic
|

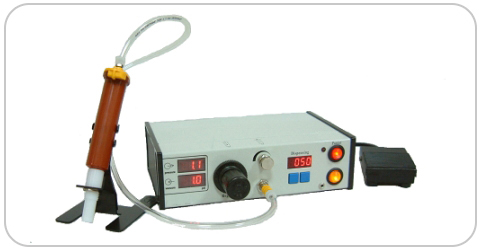

The advanced dispenser LD-2070D is the next generation of the LD-2070. In addition to having a vacuum system to prevent glue leakage, LD-2070D supports a variety of precise and convenient input functions. Different from traditional analog dispenser, its digital timer can electronically control the dispensing time, the dispensing pressure and vacuum suction. Its functions offer all-digital control to meet strict dispensing requirements. |
| Application |
Applicable to a variety of fluids. |
| Specification |
| Size |
W-145 x L-225 x H-65 mm |
| Weight |
1628 g |
| Power Input |
AC 110V ~ AC 220V |
| Voltage |
DC 24V |
| Air Input |
70 to 100 psi (5.0 to 7.0 bar) |
| Air Output |
Digital show 1 to 100 psi (0.1 to 7.0 bar) |
| Timer Range |
Digital timer 0.01 - 99.99 sec |
| Vacuum Conrol |
Adjustable |
| Display |
Dispensing pressure”BSuck-Back pressure”BTimer |
| Memory |
Last setting |
| Operation Mode |
Steady”BTimed |
| Control Type |
Foot pedal / Finger switch (Alternative) |
|
|
