Characteristic
|

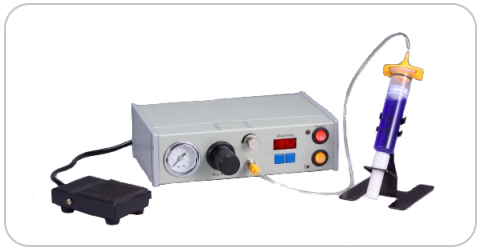

Similar to the LD-2060, the LD-2070 is equipped with a vacuum mechanism to prevent glue leakage, dripping, or stringing. In addition to the features available on the LD-2060, this unit has a digital timer which allows the user to adjust the dispensing time, making it convenient for repeated dispensing of precise quantities with increased accuracy. |
| Application |
suitable for low viscosity liquids, such as cyanoacrylates, solvents and anaerobics, etc. |
| Specification |
| Size |
W-145 x L-225 x H-65 mm |
| Weight |
1628 g |
| Power Input |
AC110V ~ AC 220V |
| Voltage |
DC 24V |
| Air Input |
70 to 100 psi (5.0 to 7.0 bar) |
| Air Output |
1 to 100 psi (0.1 to 7.0 bar) |
| Timer Range |
Digital timer 0.01 - 99.99 sec |
| Vacuum Conrol |
Adjustable |
| Memory |
Last setting |
| Operation Mode |
Steady¡BTimed |
| Control Type |
Foot pedal¡BFinger switch |
|
|
