Characteristic
|

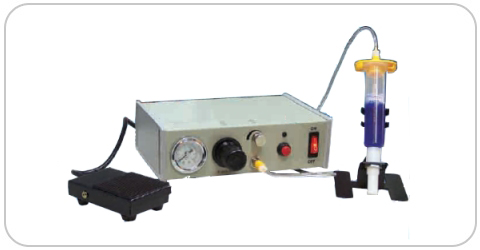

LD-2020 is an ideal addition to our robotic 3-axis platform. Without compromising accuracy, this cost-effective analogue dispenser supports hand switch and foot pedal control as well as input signals from the robotic platform. Its light and compact design makes it one of our most popular dispensers. |
| Application |
dispenses all assembly fluids. |
| Specification |
| Size |
W-145 x L-225 x H-65 mm |
| Weight |
1590 g |
| Power Input |
AC 110V ~ AC 220V |
| Voltage |
DC 24V |
| Air Input |
70 to 100 psi (5.0 to 7.0 bar) |
| Air Output |
1 to 100 psi (0.1 to 7.0 bar) |
| Timer Range |
None |
| Vacuum Control |
Adjustable |
| Operation Mode |
Steady |
| Control Type |
Foot pedal |
|
